Compression Springs

日期: 2020-01-13
浏览次数: 36

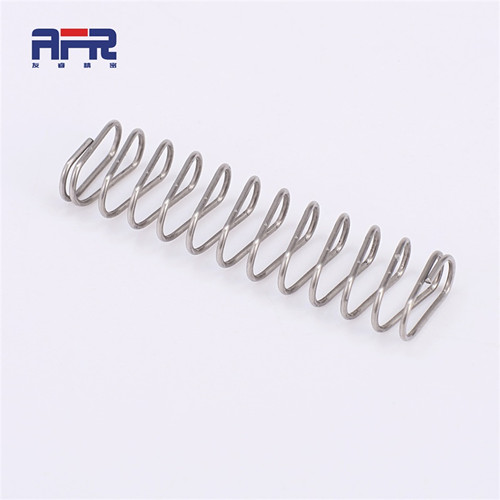

A compression spring is an open-coil helical spring that offers resistance to a compressive force applied axially.

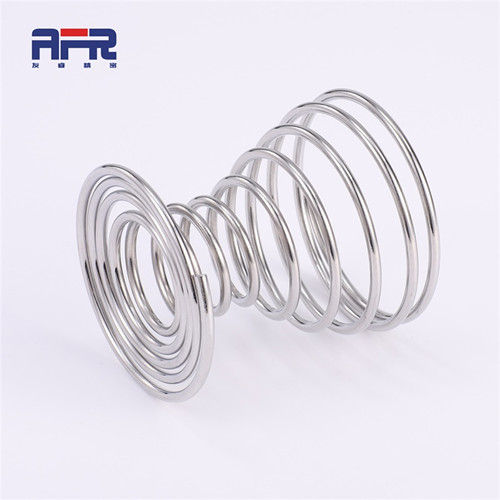

They are usually coiled at a constant diameter, though they can be coiled in other needed forms such as conical, concave (barrel), convex (hourglass), or various combinations of these.

Compression springs are used to resist force and/or store energy,

1、Characteristics

By far the most widely used type of spring, compression springs are designed to oppose compression and return to its uncompressed length when the applied force is removed.

2、Service Life

It should be noted that if critical force-versus-deflection linearity is required, only the center 60-80% of the available deflection range should be employed.

Thus, reserve at least the first and last 15-20% of the range for potential spring-end and adjacent coil-contact effects.

3、Materials

The term “spring steel” is a stock inventory term covering music wire, hard-drawn(MB) wire and oil-tempered wire.

 Additionally, stock compression spring materials may include stainless steel (300 series), beryllium copper, and phosphor bronze.

4、Tolerances

Calculated rates and loads based on SMI geometric tolerances have an approximate +/- 10%. Low or high-index springs will have higher values.

5、Requirements

Closed ends and ground ends

6、Surface Treatment

Zinc Plated,Nickel Plated,Gold Plated,Chrome Plated,Cooper Plated,Brass Plated and so on.

Dimensions Measurement Guide

Compression Springs


  1.  Hold the base of the spring in one hand, and the calipers in the other hand.

  2. Place the calipers on the outside of the last coil, measuring the largest dimension. This is called the Outside Diameter (O.D.).

  3. Place the calipers on the wire in the center of the spring. This is called the Wire or Material Size. You should also measure the wire toward one end for comparison and accuracy.

  4. Place the calipers on the full length of the uncompressed spring. This is called Free Length.

  5. Count the total coils, beginning at one end, just next to where the wire has been cut. Be sure you count all coils, including any portion of a coil. (see diagram for example)


    Compression SpringsCompression Springs
