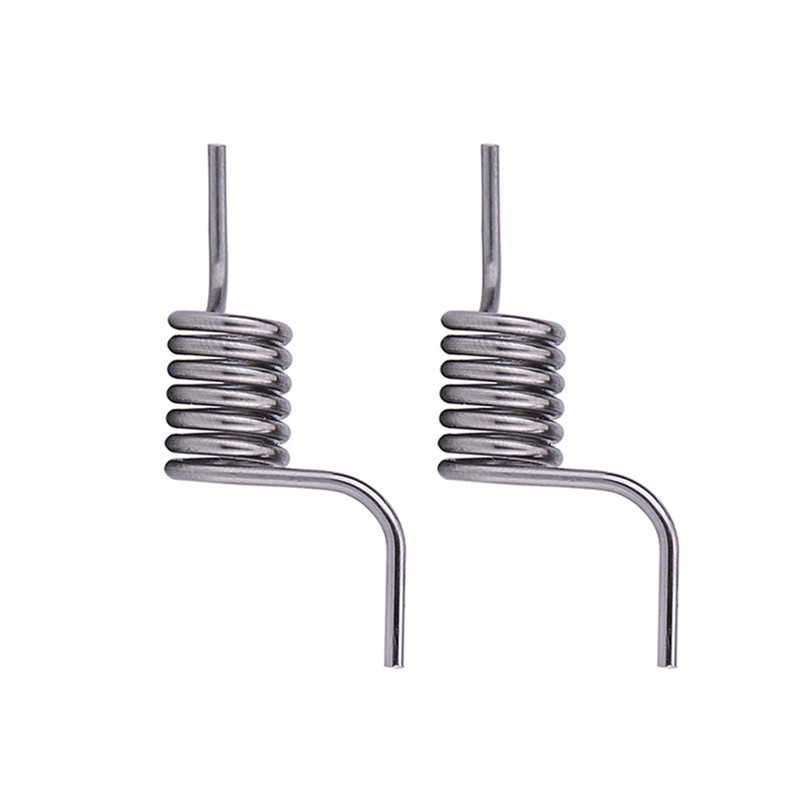

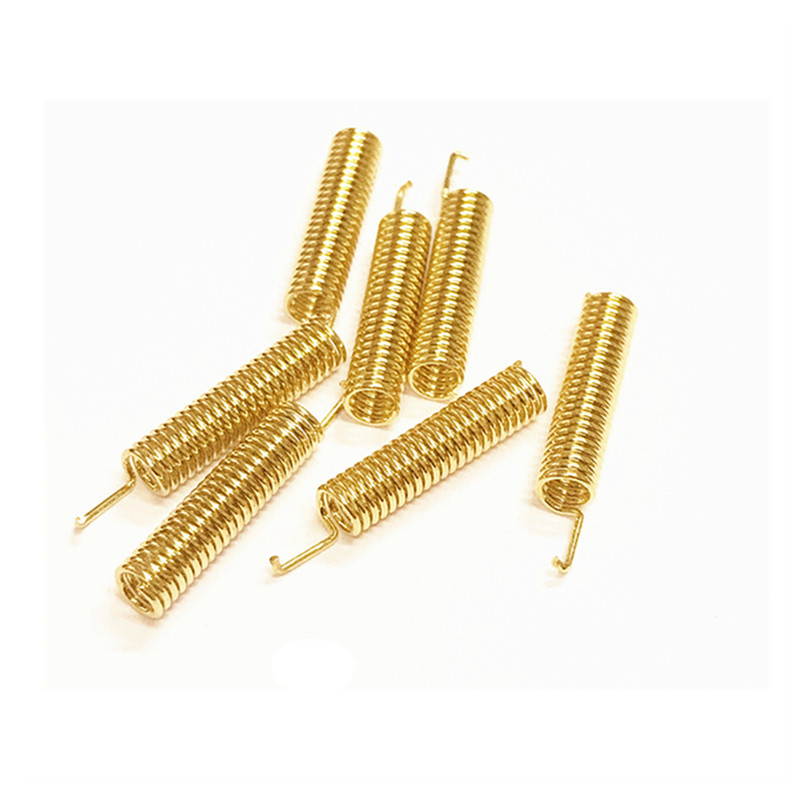

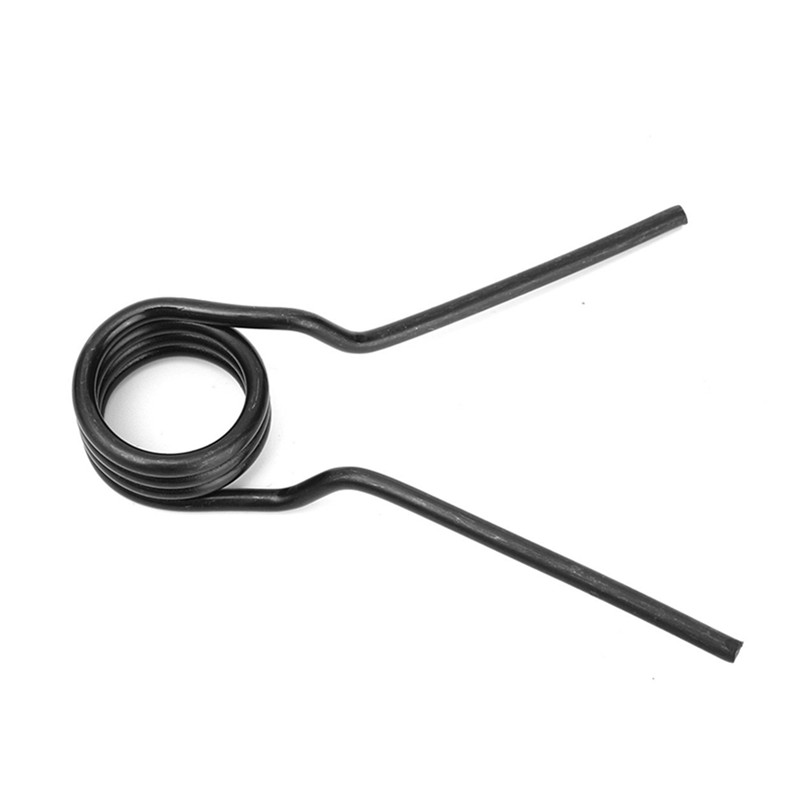

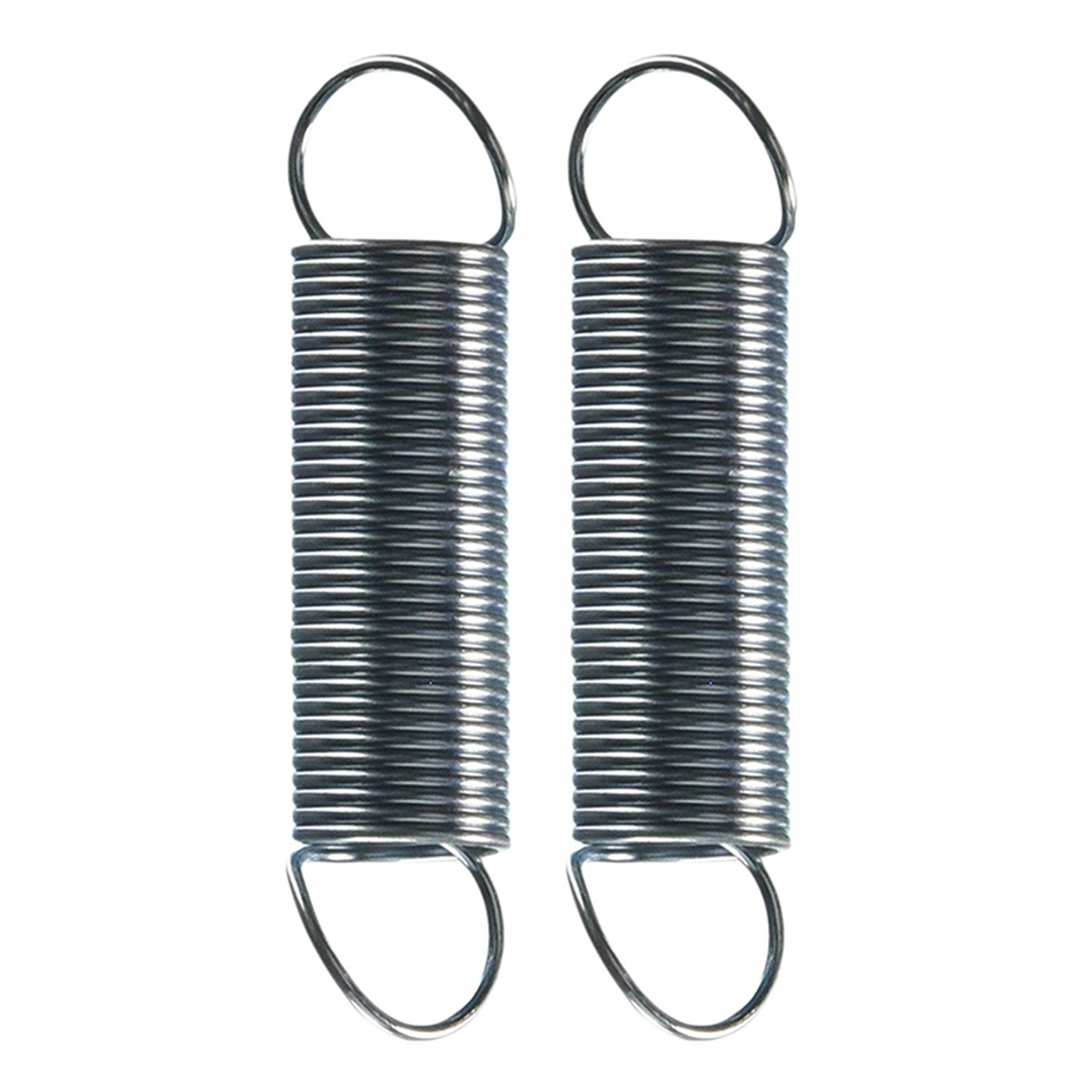

Compression spring,torsion spring,extension spring,wire forming spring

日期： 2020-01-06

浏览次数: 118

The spring is just an accumulator, it has the function of storing energy, but can not release the energy slowly, to achieve the release of this function should rely on the 'spring + large transmission ratio mechanism' to achieve, common in the mechanical table.

The spring is widely used in the mechanical and electronic industry. The spring can produce a large elastic deformation under load and convert mechanical work or kinetic energy into deformation energy. After unloading, the spring's deformation disappears and returns to its original state.

The ratio of load and deformation of the spring is called spring stiffness, the greater the stiffness, the harder the spring.

1、 the main function of the spring

（1） Control mechanical movement, such as valve spring in internal combustion engine, control spring in clutch, etc.

（2） Absorb vibration and impact energy, such as buffer springs under cars and trains, vibration absorbing springs in couplings, etc.

（3）Store and output energy as power, such as clock springs, springs in guns, etc.

（4）It is used as a force measuring element, such as a force measuring device, a spring in a spring balance, etc.

2、Classification of spring

（1） according to the nature of the force, the spring can be divided into: stretch spring, compression spring, torsion spring , extension spring,wire forming spring and bending spring.

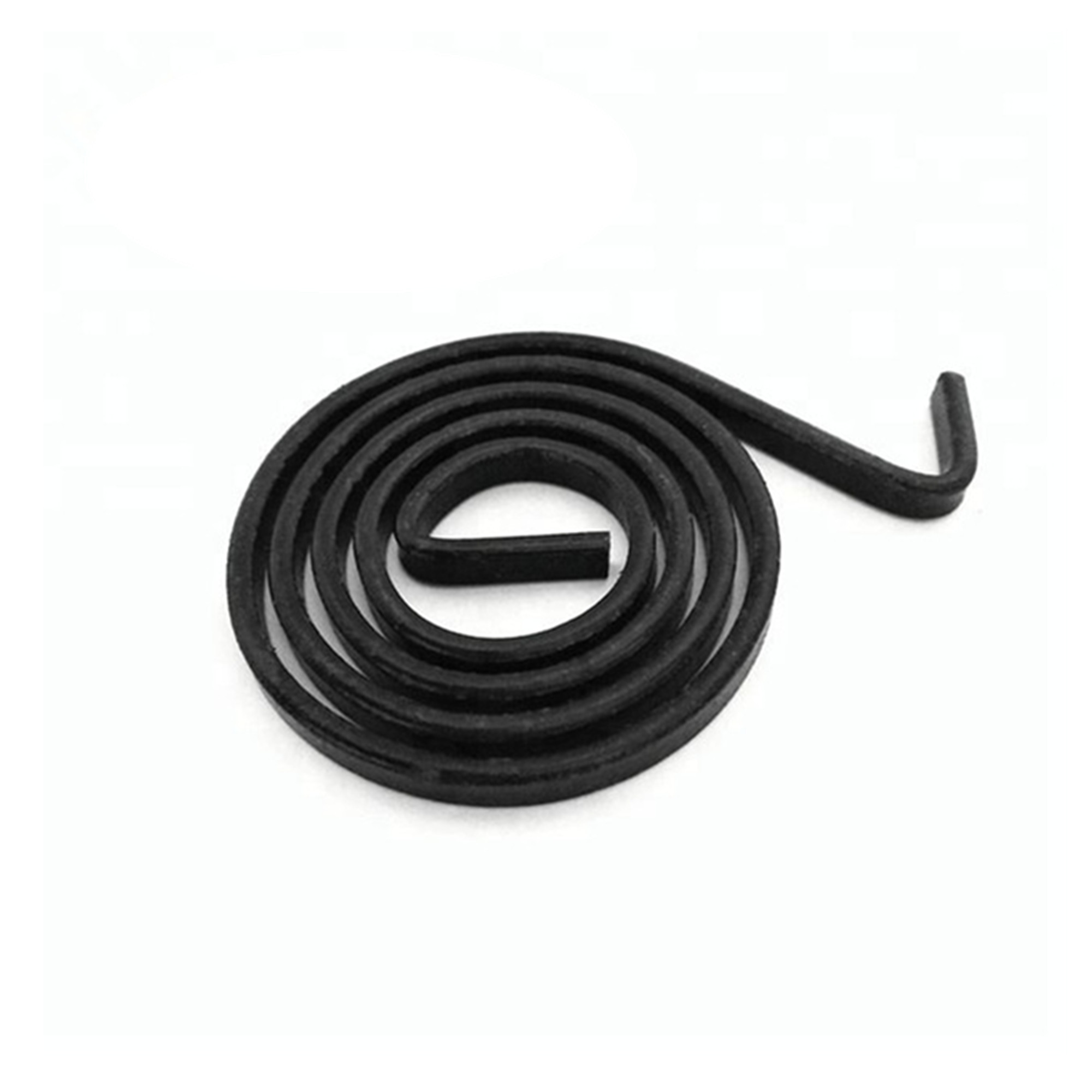

（2）according to the shape can be divided into: spiral spring, disc spring, ring spring, waveform spring, plate spring, cut cone coil spring, spring (coil spring), torsion bar spring, ground spring, clip spring, special-shaped spring, etc.

（3）according to the production process can be divided into: cold coil spring and hot coil spring (silk diameter less than 8 mm generally use cold coil method, greater than 8 mm use hot coil method).

（4）according to the elastic components of the material can be divided into: metal spring, rubber spring, polyurethane spring, hydraulic spring, gas spring, hydrogen spring and so on.

（5）according to the shape of the cross section of the spring wire can be divided into: circular cross section of the spring and the moment (square) shape of the cross section of the spring.

Generally speaking, metal spring materials should have: high elastic limit, fatigue limit, impact toughness and good heat treatment performance, commonly used are: carbon spring steel, alloy spring steel, stainless spring steel, non-ferrous metal alloy (copper alloy, nickel alloy) and so on .
