spring for pogo pin of connector

售价：￥0

商品编号：

Date of listing： 2018-12-03

Commodity origin：

Model：

Product details
产品信息
产品用途
产品展示图
品牌口碑

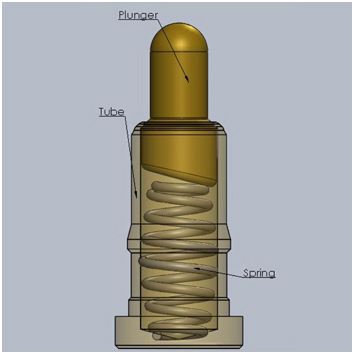

spring for pogo pin of connector:

Description: wire diameter ranged from Φ0.05-Φ5mm, minimum spring convolution: 2.7

•Various materials: music wire, carbon wire, stainless steelwire, copper, beryllium copper wire, and more

Pitch changeable

•Spring diameter changeable

•Applications: all kinds of cars,machines, electronic products, electric appliance, cameras,stationery, computers, power switches,miniature switches,architecture, commodity and home appliance, A/V equipment, hardware and plastic molds, sports equipment and gifts.
